Heavy Duty Delrin Sixer Wheel Castor

Name: Heavy Duty Delrin Sixer Wheel Castor
Brand: SHREE UMIYA ENGINEERING
Price: 100 INR
Availability: InStock

Price 100 INR/ Set

Get a Price/Quote

MOQ : 1000 Sets, ,

Heavy Duty Delrin Sixer Wheel Castor Specification

Brake
Optional (available on request)

Hole Size
12 mm

Finish
Other

Material
Other

Wheel Size
150 mm diameter

Wheel Width
50 mm

Top Plate Size
110 mm x 135 mm

Hole Spacing
85 mm x 105 mm

Load Capacity Range
600 kg to 1200 kg per caster

Swivel Radius
165 mm

Caster Type
Heavy Duty Swivel

Number of Wheels per Castor
Six

Maintenance
Minimal

Mounting Type
Plate mount

Temperature Resistance
-40C to +120C

Corrosion Resistance
Excellent

Wheel Hardness
85D Shore

Noise Level
Low

Bearing Type
Precision Ball Bearing

Heavy Duty Delrin Sixer Wheel Castor Trade Information

Minimum Order Quantity
1000 Sets, ,

Supply Ability
1000 Sets, , Per Month

Delivery Time
15 Days

About Heavy Duty Delrin Sixer Wheel Castor

Exceptionally durable, the Heavy Duty Delrin Sixer Wheel Castor is made for high-load applications. It has a 10-gauge radius flat type and measures 30 mm in diameter by 38 mm in total height. This castor is perfect for heavy-duty and industrial applications because it can support loads of up to 600 kg. The dimensions of the plate are 58 x 55 mm, and the distance between the holes is 28 mm. It offers outstanding strength, resistance to wear, and smooth movement because it is made of premium Delrin material. It guarantees dependability, mobility, and longevity in demanding conditions and is frequently utilised in manufacturing, warehouses, and heavy machinery. Each package contains a single set.

Details:

Size: 30mm
Overall Height: 38mm
Gauge: 10 Gauge
Type: Radius Flat
Load Capacity: 600Kgs.
Plate Size: 58mm x 55mm
Plate Hole Spacing: 28mm
Packing: 1 Set / Box

Designed for Heavy Industrial Demands

Constructed from premium Delrin, these heavy-duty six-wheel castors are tailored for moving substantial loads with ease. Their robust build and precision ball bearings make them perfect for industries that require frequent and durable equipment mobility, offering both strength and longevity even under extreme conditions.

Enhanced Corrosion & Temperature Resistance

Our castors deliver outstanding corrosion resistance, making them suitable for a variety of industrial settings, including those exposed to chemicals or moisture. With an effective operational temperature range between -40C and +120C, they perform reliably both in freezing and high-heat environments.

Minimal Maintenance and Low Noise Operation

Benefit from reduced downtimes thanks to minimal maintenance requirements, and enjoy a quieter workspace. The high-quality Delrin wheels are not only durable but also contribute to a low noise environment, enhancing the overall safety and comfort for operators.

FAQs of Heavy Duty Delrin Sixer Wheel Castor:

Q: How should the Heavy Duty Delrin Sixer Wheel Castor be installed on equipment?

A: The castor features a plate mount design with a top plate size of 110 mm x 135 mm, and hole spacing of 85 mm x 105 mm. Installation involves securing the plate to your equipment or trolley using M12 bolts (matching the 12 mm hole size) for optimal stability.

Q: What are the primary benefits of using Delrin material in these castors?

A: Delrin (Acetal Resin) offers exceptional strength, low friction, and excellent resistance to wear and corrosion. These properties ensure longevity, reliable heavy load support, and suitability for harsh industrial conditions, contributing to longer service life and minimal maintenance.

Q: When is it advisable to request the optional brake feature?

A: The optional brake is recommended when precise stationary positioning or safety during loading and unloading is a priority. It is especially useful for trolleys or machinery that may be used on inclined surfaces or in environments where stability during pauses is essential.

Q: Where are these heavy-duty swivel castors typically used?

A: They are widely used across industrial facilities in India and globallyespecially for heavy-duty trolleys, material handling carts, and the movement of large machinery where high load capacity, durability, and smooth maneuverability are required.

Q: What is the typical process for selecting the right load capacity?

A: Determine the total weight of the equipment, divide it by the number of castors used, and select a caster with a load rating that exceeds this weight per unit. Our castors handle 600 kg to 1200 kg per caster, ensuring compatibility with a range of heavy-duty applications.

Q: How does the six-wheel configuration enhance performance?

A: The six-wheel design distributes loads evenly, improving stability, reducing floor wear, and facilitating smoother and quieter movement. This makes them especially advantageous for transporting very heavy or delicate machinery across industrial floors.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Sixer Wheel Castor Category

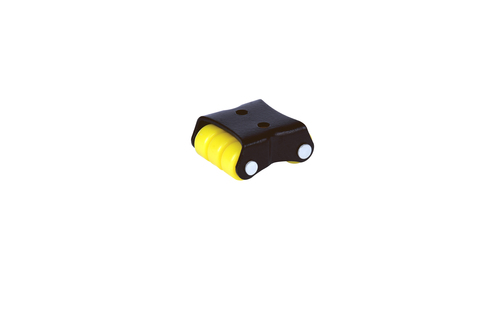

Nano Baby Sixer Wheel Castor
